越野叉车>>详细信息

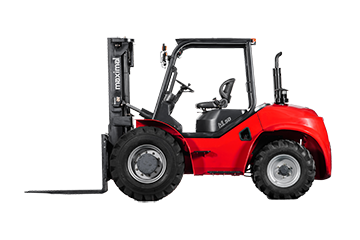

1.8吨/2.5吨/3.5吨 液力四驱

产品介绍

1.8吨/2.5吨/3.5吨 液力四驱

产品颜色

更多图片

INTRODUCTION TO MAXIMAL

Four-wheel drive system


Maximal hydraulic rough terrain forklift, it is a compact model produced based on 2WD forklift while with 4 wheel drive system. Hydraulic 4-wheel drive system makes the forklift work in harsh condition over rough terrain.

Compact Size


Compact dimension size enhance forklift access and maneuverability.


Gradeability


Strong gradeability let the machine powerful in tough area.


Mast Angle


Mast tilt angle 10°forward and 12°back for precise material handling.

Engine

Maximal can supply engine with flex label which complies with EU emission standard before 31st, Dec., 2015 especially for European market. Euro4 engine will be available for sales in 2016.

Forklift Specification

General 1 Model FD18T-C4WV3 FD18T-C4W(6)3 FD25T-C4WV3 FD25T-C4W(6)3 FD35T-C4WV3 FD35T-C4W(6)3 FD18T-C4WE3 FD25T-C4WE3 FD35T-C4WE3
2 Power type Diesel
3 Rated capacity Kg 1800 2500 3500 1800 2500 3500
4 Load centre mm 500 500 500 500 500 500
Characteristic&
Dimension
5 Lifting height mm 3000 3000 3000 3000 3000 3000
6 Free lift mm 105 160 165 105 160 165
7 Fork size L×W×T mm 1070×100×35 1070×122×40 1220×122×45 1070×100×35 1070×122×40 1220×122×45
8 Fork regulating range Min./Max. mm 200-1315 250-1310 250-1500 200-1315 250-1310 250-1500
9 Mast tilt angle F/R Deg 10/12
10 Front overhang mm 520 586 601 520 586 601
11 Rear overhang mm 600
12 Min.ground clearance
(drive steering axle)
mm 219
Min.ground clearance
(chaissis)(Unladen/Laden)
mm 230/215 230/215 224/230 230/215 230/215 224/230
Min.ground clearance
(mast)(Unladen/Laden)
mm 275/250 270/255 270/250 275/250 270/255 270/250
Ground clearance
 (drawbar pin )
mm 354.5 354.5 430 354.5 354.5 430
Height from seat surface to
overhead guard inner side
mm 990 990 1043 990 990 1043
13 Overall dimensions Length to face of fork
(without fork)
mm 3000 3066 3081 3000 3066 3081
14 Overall width mm 1450 1450 1600 1450 1450 1600
15 Mast lowered height mm 2145 2235 2330 2145 2235 2330
16 Mast extended height
(with backrest)
mm 4140 4175 4305 4140 4175 4305
17 Overhead guard height mm 2256 2256 2276 2256 2256 2276
18 Turning radius mm 3120
19 Min. right angle
stacking aisle width
 Pallet size a12=1000,
b12=1200
mm 4629 4706 4921 4629 4706 4921
Pallet size a12=1200,
b12=800
mm 4829 4906 4871 4829 4906 4871
20 Min. right angle
stacking aisle width
(pallet size a12=1200,
b12=1200)
mm 2670 2725 2670 2725
Performance 21 Speed Travel
(Unladen/Laden)
Km/h 18/17 18/17 18/17 20/19 20/19 19/18
22 Lifting
(Unladen/Laden)
mm 630/590 620/570 480/450 640/610 650/600 510/485
23 Lowering
(Unladen/Laden)
mm 420/450 510/450 500/450 420/450 510/450 500/450
24 Max. Drawbar pull
( Unladen/Laden)
KN /31 38 /27 /38 /38 /38
25 Max. Gradeability
(Unladen/Laden)
/50 50 /30 /80 /50 /45
Braking distance m ≤6
Tyre 26 Tyre Front 12-16.5-12PR 14-17.5L-14PR 12-16.5-12PR 14-17.5L-14PR
27 Rear 10.0/75-15.3
Tyre pressure(Front/Rear) MPa 0.62/0.55 0.55/0.55 0.62/0.55 0.55/0.55
28 Tread Front mm 1123 1250 1123 1250
29 Rear mm 1190
Ground clearance
 (Front tyre centre )
(Unladen/Laden)
mm 405.5/385 450.5/425 405.5/385 450.5/425
Ground clearance
(Rear tyre centre )
(Unladen/Laden)
mm 370/350 370/385 370/350 370/385
30 Wheelbase mm 1880
Weight 31 Self weight kg 4255 4830 5545 4255 4830 5545
32 Weight
distribution
Laden Front axle kg 4602 6597 7872 4602 6597 7872
33 Rear axle kg 1453 733 1073 1453 733 1073
34 Unladen Front axle kg 1702 2173 2345 1702 2173 2345
35 Rear axle kg 2553 2657 3100 2553 2657 3100
Power&
Transmission
36 Battery Voltage/Capacity V/Ah 12/90
37 Engine Model S4S/D04EG 4TNE98-BQFLC
38 Manufacture MITSUBISHI YANMAR
39 Rated output/r.p.m. Kw 35.3/2250 / 36/2250 42.1/2300
40 Rated torque/r.p.m. N.m 182/1800 / 177/1800 186-206/1700
41 No. of cylinder 4 4
42 Bore×Stroke mm 94×120  98×110
43 Displacement L 3.31 / 3.331 3.318
44 Fuel tank capacity L 55
45 Transmission Manufacture China China
46 Type FSDT35I FSDT35Ⅰ
47 Stage F/R 2/1 2/1
48 Operating pressure Mpa 16.5 20 20 16.5 20 20

Mast Specification
